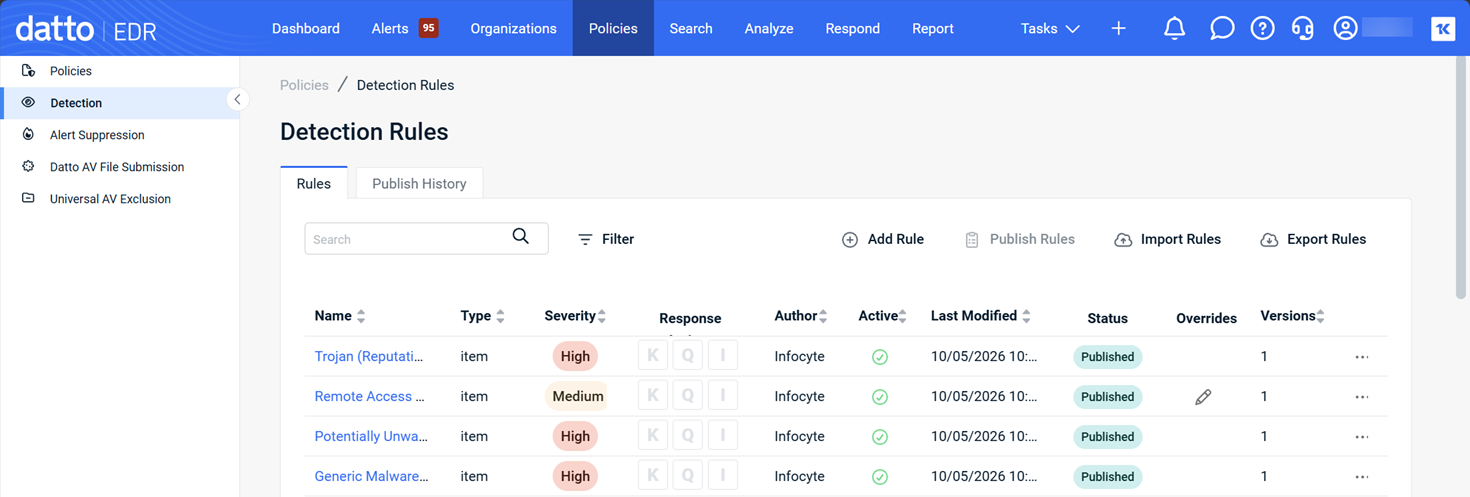

When you visit the Detection Rules page, the Rules view is selected by default.

Field name	Definition
Type	Defines the characteristics that must be met before Datto EDR will act on the rule: Item: Agent will evaluate, alert, and take action against individual events as they are received to determine if the events are notable attacker behaviors EXAMPLE  A PowerShell command's arguments would be evaluated by the rule and identified as a PowerShell download behavior without any context of previous or follow-on events. Correlation: Agent will evaluate all recent behaviors observed to determine if there is a pattern of threat behavior and, if so, act accordingly EXAMPLE  A PowerShell download command followed by a PowerShell decode command (an indication of a greater threat if conducted on a new file that was just downloaded) would be combined into a single high-priority correlation alert and acted upon appropriately.
Severity	The severity level of the alert that will generate if the rule is triggered
Response Actions	If the rule is capable of automated response, indicates the type of action the Endpoint Security agent will attempt to take upon detection of a threat; the following values are possible: K: Attempts to kill suspected malicious processes Q: Quarantines files that are potentially a threat I: Performs a local network isolation of a Windows or Linux system by using a filter driver on Windows and iptables or ipfw on Linux
Author	The name of the author who created the rule
Active	Click the icon in this field to activate or deactivate the policy; indicates that the policy is active; indicates that the policy is inactive
Last Modified	The time and date the rule was last updated
Versions	Indicates how many versions of this specific rule have existed in your instance; version number iterates each time the rule is modified
	Click to delete the rule or view its previous versions

The Publish History view displays a log of rule publication activity for your instance.

From the Detection Rules page, click Add Rule or click the name of an existing rule to open the editor. Populate or change the following fields, and then click Save.

IMPORTANT  Once you create or edit an existing rule, you'll need to ensure that it's active and then click Publish Rules on the Detection Rules page before it will go into effect.

NOTE  Infocyte-created rules can only be modified by our internal detection engineers. However, users can create and edit their own custom rules if desired.

A detection rule is a single yes-or-no question that Datto EDR asks about each event on an endpoint:

"Does this activity match the conditions I am looking for?"

If the answer is yes, the rule triggers and Datto EDR either generates an alert or records an observation, depending on the rule configuration.

The following example is a complete detection rule:

type == "process" &&

lowercase(name) == "mimikatz.exe"

The rule can be read as: "A process starts and its name is mimikatz.exe." Both conditions must be true for the rule to match. This is a complete, working detection rule.

Common Mistake

A detection rule is a single logical expression, not a list of separate conditions.

Every condition must be connected with either:

• && (AND)
• || (OR)

If conditions are placed on separate lines without a logical operator, the rule is invalid.

Incorrect:

path == "c:\program files\tool-a.exe"

path == "c:\program files\tool-b.exe"

path == "c:\program files\tool-c.exe"

This example does not work because the conditions are not connected. Even if it were valid, a single file cannot exist at three different paths simultaneously. Conditions joined with && must all be true at the same time. When you want to match any one condition, use ||.

Correct:

path == "c:\program files\tool-a.exe" ||

path == "c:\program files\tool-b.exe" ||

path == "c:\program files\tool-c.exe"

Line breaks are used only to improve readability. A rule can be written on a single line or spread across multiple lines. The important requirement is that every condition is connected by a logical operator.

The Detection Rules page is where you create, edit, activate, and publish rules. Each rule consists of an event type, one or more field conditions, a severity level, and optional response actions.

Event types

Every rule starts with a type field that names the kind of endpoint event being watched. Type names are singular and lowercase (for example, autostart, not autostarts). If you omit the type, the rule will not behave as expected.

Event type	What it captures
process	A program starting. The most common starting point.
connection	A network connection.
autostart	Something configured to run at startup — a service, a Run key, a scheduled task.
amsi	A script inspected by Windows as it ran (PowerShell, JScript, VBScript).
filerep	A file found on disk.
driver	A loaded kernel driver.
artifact	Evidence of past execution, such as a Shim Cache entry.
application	Installed software.
account	A local user account.
memscan	A suspicious region found in memory.

EXAMPLE  type == "process"

Fields by event type

A field is one piece of information about an event. Only use field names from the tables below. If you use a field name that does not exist for the event type, the rule will not error — it will silently never match, which is much harder to notice.

Fields available for process event type

Field	Type	Description
name	text	The program's file name, for example powershell.exe.
path	text	Full path to the program on disk.
commandLine	text	The full command line the program was started with.
decodedPayload	text	A decoded version of the command line — reveals encoded commands.
parentProcessName	text	The program that started this one.
parentCommandLine	text	That parent's command line.
grandParentProcessName	text	The program that started the parent.
owner	text	The account it ran as, for example CONTOSO\jsmith or NT AUTHORITY\SYSTEM.
signed	true/false	Whether the file carries a valid digital signature.
signature.subjectName	text	Who signed it, for example Microsoft Corporation.
signature.issuerName	text	The certificate authority that issued the signature.
md5, sha1, sha256	text	File hashes.
size	number	File size in bytes.
entropy	number	How "scrambled" the file looks — high values suggest packed or encrypted content.
versionInfo.originalfilename	text	The name compiled into the file — catches renamed files.
versionInfo.companyname	text	Company name from the file's properties.
versionInfo.productname	text	Product name from the file's properties.
pid, ppid	number	Process ID and parent process ID.
bitness	number	32 or 64.
isDotNet	true/false	Whether it's a .NET program.
started	date/time	When the process started.

EXAMPLE
type == "process" &&
lowercase(name) == "powershell.exe"

NOTE  Entering the field in lowercase(), like lowercase(name), makes the comparison case-insensitive.

Fields available for connection event type

On a connection event, the details of the program making the connection live under a process. prefix. Use process.commandLine, process.parentProcessName, and process.owner. Writing a bare commandLine on a connection rule will not match. Ports are numbers, not text: use remotePort == 443, never remotePort == "443".

Field	Type	Description
remoteAddr	text	The address being connected to.
remotePort	number	The port being connected to.
localAddr, localPort	text, number	The local side of the connection.
proto	text	TCPv4, TCPv6, UDPv4, or UDPv6.
state	text	"2" listening, "5" established, "8" close_wait.
processName	text	The program that owns the connection.
processSha1	text	That program's SHA1.
process.*	—	The full set of process fields, nested. See the process table above.

EXAMPLE
type == "connection" &&
lowercase(process.name) == "powershell.exe" &&
remotePort == 443

Fields available for autostart event type

Field	Type	Description
kind	text	The type of entry. Values: Run Key, Service, AppInit DLL, Image Hijacks, Known DLL, Security Support Provider, Print Monitor Dll, Windows Socket, Network Provider.
name	text	The entry's name.
path	text	The program the entry points to.
place	text	The registry key or folder it lives in.
commandLine	text	The command line it will run.
signed	true/false	Whether the target file is signed.
digitalSignature.*	—	Signature details. Note: use digitalSignature here, not signature.
md5, sha1, sha256, size, entropy	—	Same meaning as on process.

IMPORTANT  On autostart and artifact events, the signature object is called digitalSignature, not signature. Using signature here won't produce an error — the rule will just never match. This is one of the most common silent failures.

Fields available for amsi event type:

Always check both content and deobfuscatedContent. Attackers layer obfuscation specifically to defeat checks against the raw content.

Field	Type	Description
appName	text	What ran the script: PowerShell, JScript, VBScript.
content	text	The script content.
deobfuscatedContent	text	A cleaned-up version with obfuscation stripped.
contentPath	text	The script's file path — empty for commands typed inline.
name, path, commandLine, owner, parentProcessName	text	The process that ran the script.

Other event types

These event types share a common set of file fields: name, path, md5, sha1, sha256, size, entropy, signed. Additional fields are noted for each.

Event type	Additional fields
filerep	created, modified, signature.*
driver	digitalSignature.*
artifact	kind, executedOn, modifiedOn, digitalSignature.*
application	name, version, publisher, installDate, vendor, product
account	name, domain, uid, priv (0 standard / 1 machine / 2 elevated), logonType, numLogon, badPasswordCount, passwordAge
memscan	method, protection, size, entropy

Severity and response actions

Each rule requires a severity level and optionally a response action. When in doubt, choose the lower severity level — you can raise it once you've seen what the rule catches. See Adding or editing rules.

Severity	Use when
High	Known-bad activity that needs attention.
Medium	Suspicious and worth investigating, but has legitimate uses.
Low	Informational, policy awareness, baseline anomalies.

Response actions can be configured to execute automatically on the endpoint when a rule matches. Do not enable these on a new rule — only attach a response action to a rule you have watched in quiet mode and are confident in. See What are automated response policies?

Action	Effect
K — Kill	Attempts to kill the suspected process.
Q — Quarantine	Quarantines the file.
I — Isolate	Isolates the endpoint from the network.

Your first rule

The following example demonstrates how to create a detection rule from start to finish.

Suppose you want to detect when rclone.exe runs. Rclone is a file transfer utility commonly used to move data between systems.

1. Identify the activity to monitor. A process starting is represented by:
    type == "process"
2. Choose the field to evaluate. The executable name is stored in the name field.
3. Define the match condition. Because the exact file name is known, use an exact match. Wrap the field in lowercase() to make the comparison case-insensitive.
4. Combine the conditions with &&.

   type == "process" &&
lowercase(name) == "rclone.exe"
5. Configure the rule:
   • Set Severity to Medium.
   • Leave the rule in quiet mode for testing.
   • Save the rule.
   • Ensure the rule is Active.
   • Click Publish Rules.

Most useful detection rules are this simple. Complex expressions, regular expressions, and advanced logic are often unnecessary unless addressing a specific detection scenario.

Complete example

Goal: "Alert me when an unauthorized remote-access tool appears on an endpoint." Unauthorized remote-access software is a common way an attacker keeps access to a network.

The tools of concern are LabTechRemoteAgent.exe, ScreenConnect.ClientService.exe, and SRService.exe.

Rule version 1

The simple rule:

type == "process" && (

lowercase(name) == "labtechremoteagent.exe" ||

lowercase(name) == "screenconnect.clientservice.exe" ||

lowercase(name) == "srservice.exe"

)

This rules means a program is starting, and its name is one of these three. No regex needed. To watch for another tool later, copy a line and change the name.

Problem you may experience with this rule

If your organization legitimately uses any of these tools, this rule fires every time that tool starts, on every endpoint that has it. That's not a detection, it's an inventory report.

Before enabling this, confirm which of these tools are actually unapproved in your environment. Remove the approved ones — or read on.

Rule version 2

Legitimate remote-access software installs properly under Program Files. Software dropped by an attacker typically runs from a temp folder, a user's profile, or ProgramData. So instead of asking "is this tool here?", ask "is this tool running from somewhere it shouldn't be?"

type == "process" &&

path == iregex(`\\(labtechremoteagent|screenconnect\.clientservice|srservice)\.exe$`) &&

path != iregex(`^c:\\program files( \(x86\))?\\`)

The rule means the following:

type == "process" — a program is starting

path == iregex(...) — its path ends in a backslash, one of the three names, then .exe

path != iregex(...) — and it is not installed under Program Files or Program Files (x86)

Match example: C:\Users\jsmith\AppData\Local\Temp\ScreenConnect.ClientService.exe C:\ProgramData\srservice.exe

Non-match example: C:\Program Files (x86)\ScreenConnect Client\ScreenConnect.ClientService.exe C:\Program Files\Splashtop\Splashtop Remote\Server\SRService.exe

This version is far quieter than the first, and it doesn't require you to know in advance which tools are approved — properly installed software excludes itself.

NOTE  False-alarm: legitimate installations in non-standard directories will still match. If you have one, add another exclusion line for its specific path.

To write a detection rule in IQL, complete the following steps:

1. Choose the event type. Start every rule with a type field. Example: type == "process". Type names are singular and lowercase.
2. Choose the fields. Add one or more field conditions using only field names that exist for that event type. Invented or misspelled field names fail silently — the rule will never match.
3. Choose a match method. Work down this list and stop at the first one that does the job:
   • Exact match — use whenever you can: name == "powershell.exe"
   • Case-insensitive exact match — the everyday default for file names and paths: lowercase(name) == "powershell.exe"
     This should be your default for anything involving a file name or path.
   • Number and date comparisons — size < 100000 && entropy > 6.5; for dates use date(started) > trailingDays(30)
   • IP address matching — remoteAddr != privateIp() or remoteAddr != cidr("10.0.0.0/8")
   • Regex — only when nothing above will do. Use iregex() for case-insensitive matching. Wrap patterns in backticks. Anchor patterns with ^ (starts with) and $ (ends with). See Appendix: Regex.

TIP  Check for empty fields. Some fields are empty on some events — decodedPayload is empty when nothing was encoded, contentPath is empty for a command typed inline. Test for that with null:
decodedPayload != null. (! means not).
An empty field compared against any pattern simply doesn't match, so in an || chain you usually don't need an explicit null check — the other side of the || still gets evaluated.

4. Combine conditions. Join all conditions with && (AND) or || (OR). Use parentheses whenever you mix && and || to avoid unintended grouping.

TIP  Wrap every || group in its own parentheses. This removes all doubt.

5. Set severity. Choose the lowest severity level that reflects the risk. You can raise it once you've seen what the rule catches.

The rule body accepts only IQL — no comments or explanatory text inside the rule.

BEFORE YOU BEGIN  Write and save your rule before following this sequence. Every new rule should start in quiet (non-alert) mode.

To safely test and publish a new rule, complete the following steps:

1. Save the rule in quiet mode. (Alert option is turned off.) No alerts, no response actions.
2. Set the rule to Active, then click Publish Rules. A saved rule does nothing until it's both active and published. New rules take a few minutes to reach your endpoints.
3. Watch the rule for a few days. Review what it matches and how often:
   • No matches at all? Either the behavior isn't happening, or the rule has a silent problem. Check for common mistakes such as a misspelled field name or wrong signature object name.
   • Far more matches than expected? Your pattern is too broad, or you're catching approved software. Add exclusions one at a time.
   • Matching roughly what you expected? Good. Move on to the next step.
4. Trigger the rule deliberately if you safely can. Running the monitored tool on a test machine is the fastest way to confirm the rule works.
5. Switch to alert mode. Only after the quiet-mode watch period.
6. Consider response actions later, if at all. Wait days or weeks of clean alerting before enabling Kill, Quarantine, or Isolate actions.

Use the Versions column on the Detection Rules page to review or roll back changes. Every edit creates a new version.

If a rule fires on normal activity, narrow it by adding one or more of the following conditions with &&. Add one at a time and watch the effect before adding another.

1. Skip digitally signed files: signed == false
2. Skip Windows system directories: path != iregex(`^c:\\windows\\system32\\`)
3. Restrict to risky parent processes: parentProcessName == iregex(`^(winword|excel|powerpnt|outlook)\.exe$`)
4. Skip built-in system accounts: owner != iregex(`nt authority\\`)
5. Target small, high-entropy files typical of packed malware: size < 100000 && entropy > 6.5
6. Exclude a specific known-good program: lowercase(parentProcessName) != "yourbackuptool.exe"

Adding exclusions one at a time lets you see the effect of each change. Adding several at once and finding the rule matches nothing tells you very little about which exclusion caused the problem.

Regular expressions (regex) match flexible patterns, such as any file name ending in .scr or any path containing a Temp folder. While powerful, regex is also one of the most common causes of broken detection rules. To reduce errors, this guide applies strict standards for using regular expressions.

IMPORTANT  Before you write a regex, ask: can I do this with exact matches instead? Several exact matches joined with || is almost always better than one clever pattern.

Mechanics

Use iregex() for case-insensitive matching. Use regex() only when capitalization genuinely matters — which, for Windows file names and paths, it almost never does.

Patterns are wrapped in backticks, which lets you use both ' and " inside the pattern without ending the string early:

path == iregex(`\\appdata\\local\\temp\\`)

Escaping characters in a regular expression is different from creating an exact match. This distinction is one of the most common sources of errors.

So the path C:\Program Files (x86)\ becomes, inside a regex:

^c:\\program files \(x86\)\\

Rules

Anchor your pattern 

^ means "starts with," $ means "ends with." An unanchored pattern matches anywhere in the value, which is usually broader than you intended.

• matches only cmd.exe, exactly:

lowercase(name) == iregex(`^cmd\.exe$`)

• matches anything under c:\windows\

path == iregex(`^c:\\windows\\`)

• matches any path ending in \evil.exe, in any folder

path == iregex(`\\evil\.exe$`)

Use | inside a single pattern for alternatives

Group them with parentheses:

name == iregex(`^(cmd|powershell|wscript|cscript)\.exe$`)

|| and | are not the same thing. || is the boolean OR that joins two complete conditions. | is the regex alternation that separates choices inside one pattern. You cannot put || between two regex patterns inside a single function call — that is invalid.

WRONG — || cannot appear inside a function call

path == iregex(`\\Temp\\` || `\\Downloads\\`)

RIGHT — one pattern, alternatives separated by |

path == iregex(`\\(temp|downloads)\\`)

RIGHT — two complete conditions joined by ||

path == iregex(`\\temp\\`) ||

path == iregex(`\\downloads\\`)

TIP  Be specific enough that normal activity doesn't match. A short generic word on its own — run, data, admin — will match constantly. Add context: a folder, a parent program, a command-line flag.

Incorrect examples

Check your work

For any regex you write, do this before you publish it:

1. Write down two real values that should match.
2. Write down two similar values that should NOT match.
3. Read the pattern against all four by hand.

If you can't complete that exercise, the pattern isn't ready. If step 2 is hard to answer, your pattern is probably too broad.

The issues below are listed in order of how frequently they cause a rule to "not work."

Always pair commandLine with decodedPayload.

Encoding a command line is the standard way to defeat a commandLine-only check. The agent decodes what it can into decodedPayload. Check both, always:

type == "process" && (

commandLine == iregex(`invoke-webrequest`) ||

decodedPayload == iregex(`invoke-webrequest`)

)

The same principle applies to amsi: check content and deobfuscatedContent together.

Catch renamed binaries with PE metadata

Renaming a tool changes name and path, but not the metadata compiled into the file:

type == "process" &&

lowercase(versionInfo.originalfilename) == "psexec.exe" &&

lowercase(name) != "psexec.exe"

That fires only when PsExec has been renamed — a much stronger signal than PsExec running under its own name. The same shape works for any tool with reliable PE metadata.

Signer identity beats the signed flag

Plenty of malware is signed, with a stolen or cheap certificate.

signed == false is a blunt instrument

When you care about provenance, check the signer:

signed == true &&

signature.subjectName != iregex(`microsoft`)

Negative lookahead for path scoping

Supported, and sometimes tidier than a separate exclusion condition:

path == iregex(`^(?!c:\\windows\\system32\\).*\\powershell\.exe$`)

Two separate conditions joined with && are usually easier for the next person to read. Choose deliberately.

Empty vs. absent

A field that is empty or absent never matches a pattern — it does not match, and it does not error. In practice this means a || chain across commandLine and decodedPayload is safe without null guards. But it also means a rule that silently matches nothing looks identical to a rule watching for behavior that isn't happening. When a rule returns zero, verify the field is populated on the events you expect before assuming the behavior is absent.

eventTime is not comparable across event types

The meaning of the timestamp depends on the event type. On a process it's the creation time; on an autostart it's when the entry was collected; on an application it's the install date. Don't build logic that compares timestamps between event types.

Correlation rules

The Rule type field offers Item and Correlation.

• Item rules — everything in this guide — evaluate one event at a time.
• Correlation rules look across multiple recent events to spot a pattern, such as a download followed by a decode followed by an execution.

Correlation rules are evaluated in the cloud, not on the endpoint, because aggregating across events requires the whole event population. They use additional syntax not covered here. If you have a multi-step behavior you want to detect, raise it with your Datto EDR contact rather than approximating it with item rules.

Quick reference

Structure

type == "<eventtype>" && <condition> && ( <condition> || <condition> )

Exact match, case-insensitive — the default

lowercase(name) == "tool.exe"

Several alternatives

type == "process" && (

lowercase(name) == "a.exe" ||

lowercase(name) == "b.exe"

)

Regex, anchored, case-insensitive

name == iregex(`^(cmd|powershell)\.exe$`)

path == iregex(`^c:\\users\\[^\\]+\\downloads\\`)

Exclusion

signed == false

path != iregex(`^c:\\windows\\`)

Numbers and dates

remotePort == 443

size < 100000 && entropy > 6.5

date(started) > trailingDays(30)

Network

remoteAddr != privateIp()

remoteAddr != cidr("10.0.0.0/8")

Recommendations

• Anchor:  ^ (starts with) and $ (ends with), which stop a pattern matching anywhere in a value.
• Detection rule: Yes/no condition Datto EDR evaluates against endpoint activity.
• Event type: Kind of activity being watched: a program starting, a network connection, a startup entry.
• Exact match: Checking that a value equals something precisely; for example, name == "cmd.exe".
• False positive: Match on activity that is not actually malicious.
• Field: One piece of information about an event; a program's name, its path, its command line.
• Infocyte Query Language (IQL): Language detection rules are written in. Loosely resembles JavaScript.
• Publish: Pushes saved rule changes into effect. Rules do nothing until published.
• Quiet/non-alert mode: Rule runs and records matches without raising alerts. Where every new rule should start.
• Regular expression (Regex): Flexible pattern-matching language. Powerful, easy to get wrong, used sparingly.
• Response action: Something the agent does automatically on a match; kill, quarantine, isolate.
• Severity: How serious a match is, from low to high.

Most silent failures are caused by a missing operator, a misspelled field name, or the wrong signature object.

Work through this checklist:

• Missing operator: Every condition must be joined with && or ||. Conditions on separate lines with no operator between them will not work.
• Misspelled or wrong field name: Wrong field names fail silently. Check the field reference tables and confirm the field exists for your event type.
• Wrong signature object: Use signature on process and filerep events. Use digitalSignature on autostart, artifact, and driver events.
• Process fields on connection events: On connection events, process details are nested under process.. Use process.commandLine, not commandLine.
• Case sensitivity: Use iregex() or lowercase() for file names and paths. A plain regex() match where the real value differs in capitalization will never match.
• Backslash inside a regex: One backslash in an exact match is written as \. Inside a regex, one backslash must be written as \\.
• Port as text: Ports are numbers. Use remotePort == 443, not remotePort == "443".
• Event type pluralized: Types are singular. Use process, not processes.
• Rule not published: A rule does nothing until it is both set to Active and published via Publish Rules.

Use regex only when exact matches and alternatives joined with || won't do the job. When you do write one, anchor it and test it against known good and bad values before publishing.

Regex is the single biggest cause of broken detection rules. Before writing one, ask: can I do this with exact matches instead? Several exact matches joined with || is almost always clearer and safer.

When you must use regex:

• Use iregex() for case-insensitive matching (the default for Windows paths and file names).
• Wrap patterns in backticks: iregex(`pattern`).
• Anchor patterns with ^ (starts with) and $ (ends with) to prevent unintended broad matches.
• Inside a regex, write \\ for a backslash and \. for a literal dot (a bare . matches any character).
• Use | inside a single pattern for alternatives: iregex(`^(cmd|powershell)\.exe$`). Do not use || inside a regex function call.
• Before publishing, write down two values that should match and two similar values that should not, and verify the pattern against all four by hand.

Patterns to avoid: .*cmd.* (short word in wildcards matches almost everything), .* or .+ alone (matches every event), and nested repetition such as (.*)+ (can cause the engine to hang).

Match on PE metadata rather than the file name — renaming a tool changes its name and path but not the metadata compiled into the file.

Use versionInfo.originalfilename to catch renamed binaries. For example, this rule fires only when PsExec has been renamed — a much stronger signal than PsExec running under its own name:

type == "process" &&
lowercase(versionInfo.originalfilename) == "psexec.exe" &&
lowercase(name) != "psexec.exe"

The same approach works for any tool with reliable PE metadata.

Item rules evaluate one event at a time on the endpoint. Correlation rules look across multiple recent events in the cloud to spot multi-step patterns.

The Rule type field on the Detection Rules page offers two options:

• Item — evaluates a single event at a time on the endpoint. This is the type covered throughout this article.
• Correlation — evaluates across multiple recent events, for example a download followed by a decode followed by an execution. Correlation rules are evaluated in the cloud because aggregating across events requires the whole event population. They use additional syntax not covered here.

If you have a multi-step behavior you want to detect, contact your Datto EDR representative rather than approximating it with item rules.
