What are EDR detection rules?

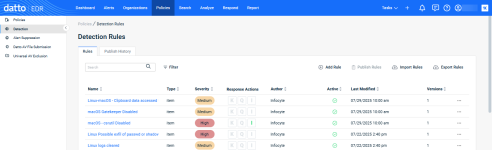

When you visit the Detection Rules page, the Rules view is selected by default.

Feature	Definition
Rules	Click to switch to the Rules view
Publish History	Click to view a log of rule publication activity for your instance
Search	Enter a partial or whole value to filter current view to matching records.; click Filter to apply additional search criteria
Add Rule	Enables you to create a new detection rule by using the rule editor; for more information, refer to the Adding or editing rules section of this article
Publish Rules	Click to publish new rules and rules with configuration changes since the last publish
Import Rules	Enables you to import new rules in YAML format; maximum file size is 100 MB.
Export Rules	Enables you to export existing rules in YAML format; only custom rules can be exported

Field name	Definition
Process Name	The name of the rule; clicking it will open the rule editor; for more information, refer to the Adding or editing rules section of this article
Type	Defines the characteristics that must be met before Datto EDR will act on the rule: Item: Agent will evaluate, alert, and take action against individual events as they are received to determine if the events are notable attacker behaviors EXAMPLE  A PowerShell command's arguments would be evaluated by the rule and identified as a PowerShell download behavior without any context of previous or follow-on events. Correlation: Agent will evaluate all recent behaviors observed to determine if there is a pattern of threat behavior and, if so, act accordingly EXAMPLE  A PowerShell download command followed by a PowerShell decode command (an indication of a greater threat if conducted on a new file that was just downloaded) would be combined into a single high-priority correlation alert and acted upon appropriately.
Severity	The severity level of the alert that will generate if the rule is triggered
Response Actions	If the rule is capable of automated response, indicates the type of action the Endpoint Security agent will attempt to take upon detection of a threat; the following values are possible: K: Attempts to kill suspected malicious processes Q: Quarantines files that are potentially a threat I: Performs a local network isolation of a Windows or Linux system by using a filter driver on Windows and iptables or ipfw on Linux
Author	The name of the author who created the rule
Active	Click the icon in this field to activate or deactivate the policy; indicates that the policy is active; indicates that the policy is inactive
Last Modified	The time and date the rule was last updated
Versions	Indicates how many versions of this specific rule have existed in your instance; version number iterates each time the rule is modified
	Click to delete the rule or view its previous versions

The Publish History view displays a log of rule publication activity for your instance.

Feature	Definition
Rules	Click to switch to the Rules view
Publish History	Click to view a log of rule publication activity for your instance
Search	Enter a partial or whole value to filter current view to matching records.

Field name	Definition
Published On	The date and time of the rule's publication
Published By	The identity of the user or process that published the rule

From the Detection Rules page, click Add Rule or click the name of an existing rule to open the editor. Populate or change the following fields, and then click Save.

IMPORTANT  Once you create or edit an existing rule, you'll need to ensure that it's active and then click Publish Rules on the Detection Rules page before it will go into effect.

Field or feature name	Definition
Process Name	The name of the rule
Actions	When active, rule will generate alerts; when inactive, no alerts will generate
Severity	The severity level of the alert that will generate if the rule is triggered
MITRE ID	The specific MITRE ATT&CK knowledge base ID to which the rule maps
MITRE tactic	The specific MITRE ATT&CK tactic to which the rule maps
Short description	A brief description of the rule that will appear in alerts that it generates
Rule type	Defines the characteristics that must be met before Datto EDR will act on the rule: Item: Agent will evaluate, alert, and take action against individual events as they are received to determine if the events are notable attacker behaviors EXAMPLE  A PowerShell command's arguments would be evaluated by the rule and identified as a PowerShell download behavior without any context of previous or follow-on events. Correlation: Agent will evaluate all recent behaviors observed to determine if there is a pattern of threat behavior and, if so, act accordingly EXAMPLE  A PowerShell download command followed by a PowerShell decode command (an indication of a greater threat if conducted on a new file that was just downloaded) would be combined into a single high-priority correlation alert and acted upon appropriately.
Description	The extended description of the policy's purpose, functions, and any other pertinent information
Rule Body	Free-text editor in which you can specify the endpoint actions that Datto EDR should take if this rule is triggered; all syntax must be in YAML format

The Infocyte Query Language (IQL) is loosely based on JavaScript and related programming languages. It is designed to be familiar, easy to learn, and intuitive to use.

No need to escape (normally)

IQL is designed to simplify interaction. For example, copy-pasting Windows file paths is straightforward. Strings are handled naturally without requiring escape characters.

If you need advanced string handling, we recommend using the regex() function.

Usage

Detection rules contain two parts:

1. A conditional statement – written in IQL, similar to JavaScript.
   • Supports boolean operators (&&, ||)
   • Allows grouping and exclusions
   • Includes useful functions for working with endpoint data types

2. An action – executed when the condition evaluates as true.

For more details on IQL syntax, see the API Reference section below.

API Reference

Rules are evaluated against data collected by the EDR agent on the endpoint.

• All data types contain a type field.

• Any collection involving files on disk includes properties such as:

  • path
  • md5
  • sha1
  • sha256

Detection rules in the Infocyte Query Language (IQL) can range from simple equality checks to complex expressions using functions, operators, and regex.

Basics

Simple rules

You can create simple rules using equality (==) or inequality (!=) operators:

path == "c:\users\john\malware.exe"

Advanced rules

Complex rules can combine multiple conditions with boolean operators (&&, ||) and grouping:

path == "c:\users\john\malware.exe" ||

    (path == "c:\users\*\ignore-me.exe" && parentPath != "c:\windows\system32\explorer.exe")

Functions

Several functions are available to help simplify working with data.

Here is example input used to demonstrate each function.

{

    "path": "c:\\windows\\system32\\notepad.exe",

    "commandLine": "c:\\windows\\system32\\notepad.exe c:\\users\\joe\\Documents\\Passwords.TXT",

}

lowercase()

Transforms a string or field to lowercase.

Examples of valid rules to make EDR alert to items that have a path equal to c:\windows\system32\notepad.exe

path == lowercase("C:\windows\System32\NotePad.EXE")

lowercase(commandLine) == "c:\windows\system32\notepad.exe c:\users\joe\documents\passwords.txt",

lowercase("StRIng") == lowercase("stRing")

uppercase()

Transform a string or field to its uppercase. Functions the same way as lowercase().

regex()

Provides PCRE-compliant regex matching framework.

path == regex(".*notepad\.exe")

iregex()

Convenience wrapper for case insensitive PCRE compliant regex matching.

commandLine == iregex("\.txt")

Which is equivalent to:

commandLine == regex("(?i)\.txt")

date()

Supports parsing and comparing dates in multiple formats:

• yyyy-mm-dd

• yyyy-mm-dd HH:MM

• yyyy-mm-dd HH:MM:SS

• yyyy-mm-ddTHH:MM:SSZ (ISO format)

date('2020-01-01') < date('2021-01-01')

This operation works on fields as well:

date(createdOn) > date('2021-01-01')

today()

Returns the current date/time for comparisons.

date(createdOn) > today()

trailingDays()

Returns the date/time for the number of days prior to today.

The following matches any created date within the last 30 days:

date(createdOn) > trailingDays(30)

cidr()

Generates a network CIDR for matching IP.

type == "connection" && remote_addr != cidr("192.168.1.0/24")

privateIp()

Matches IPs against private or loopback ranges.

The following matches all destIp instances that are not loopback or private:

type == "connection" && remote_addr != privateIp()

IMPORTANT  It is highly recommended that you deploy new detection rules in Non-Alert mode for initial testing. This prevents excessive alerts or unintended automated responses.

Detecting a process with a specific hash

General Rule

type == "process" && (*type can also be modules, drivers, autostarts, artifacts)
name == "Name.exe" &&
sha1 == "sha1_hash" (*can also be sha256 hash)

Specific Example: Calculator.exe

type == "process" &&
name == "Calculator.exe" &&
sha1 == "80865A5563EB92B8653A5AF3DB371D7BC1674B2D"

Detecting a network connection from a process with a specific hash.

General Rule

item_type == “connection” &&
process_sha1 ==  "sha1_hash" (*can also be sha256 hash)
additional conditions can be added to this General rule like local/remote address
(localaddr, remoteaddr) or local/remote port (localport, remoteport)

Specific Example: Calculator.exe

Alerting on network connections initiated by Calculator (calc.exe)

item_type == “connection” &&
process_sha1 == "80865A5563EB92B8653A5AF3DB371D7BC1674B2D"

Detecting process execution in non-standard directories.

NOTE  In some regex rules, the backtick (``) is used as a quote character. This allows both single (‘ ’) and double (“ ”) quotes to be used inside the regex string without being interpreted as string terminators.

type == “process” &&
path ==iregex (`\\AppData\\Local\\Temp\\` || `\\Downloads\\` || `\\AppData\\Roaming\\`)

Detecting suspicious command-line activity. Alert to users running findstr.exe looking for passwords.

type == "process" &&
lowercase(name) == "findstr.exe" &&
commandLine == iregex("password")
